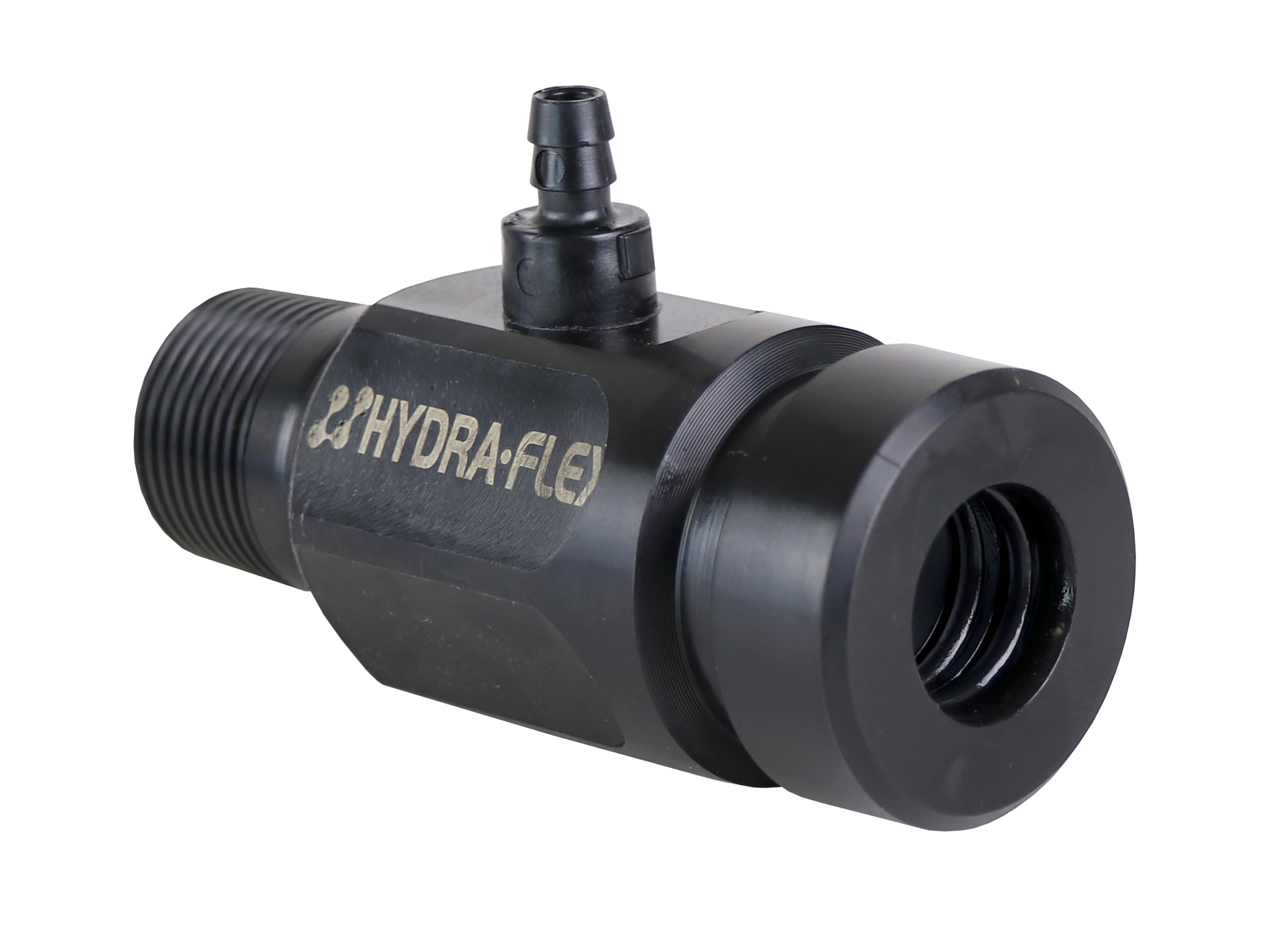

PC3 All-Composite Quick-Connect Single Hose Barb
818161THE MOST CHEMICAL’RESISTANT INJECTOR ON THE MARKET:
Our new innovative solution that will stand up to the most aggressive, yet common car wash chemicals the composite injector. The nozzle and body of these injectors are manufactured using a corrosion-resistant composite material, which has been tested by the industry's leading chemical manufacturers with consistently positive results. A Hastelloy spring, a Teflon check ball, and an exclusive XFC o-ring material are also used for long life and durability.
IDEAL FOR USE WITH EVEN THE MOST AGGRESSIVE CAR WASH CHEMICALS:Â
- Hydrochloric Acid
- Sulfuric Acid
- Phosphoric Acid
- Hydrofluoric Acid
- Sodium Hydroxide
- Potassium Hydroxide
- Petroleum Distillates
- 2-Butoxy Ethanol
- Sodium Metasilicate
PC3 injectors are for use with BAM valves only.
Specifications
Recommended Pressure: 200 PSI (14 bar) Inlet, 66 PSI (4.6 bar) Outlet
Maximum Water Source Temperature: 140°F (60°C)
Inlet Connection: PC3 Quick-Connect (for use with Aqua-Lab HD/XD systems only)
Outlet Connection: 3/4" MNPT.
Part Numbers
| Injector Color | Flow Rate @ 200 PSI | Part Number |
|---|---|---|
| Black | 8.0 GPM | 818161 |
| Black | 10.0 GPM | 818177 |
| Black | 12.0 GPM | 818186 |
| Black | 15.0 GPM | 818207 |
*PC3 injectors are for use with BAM valves only
