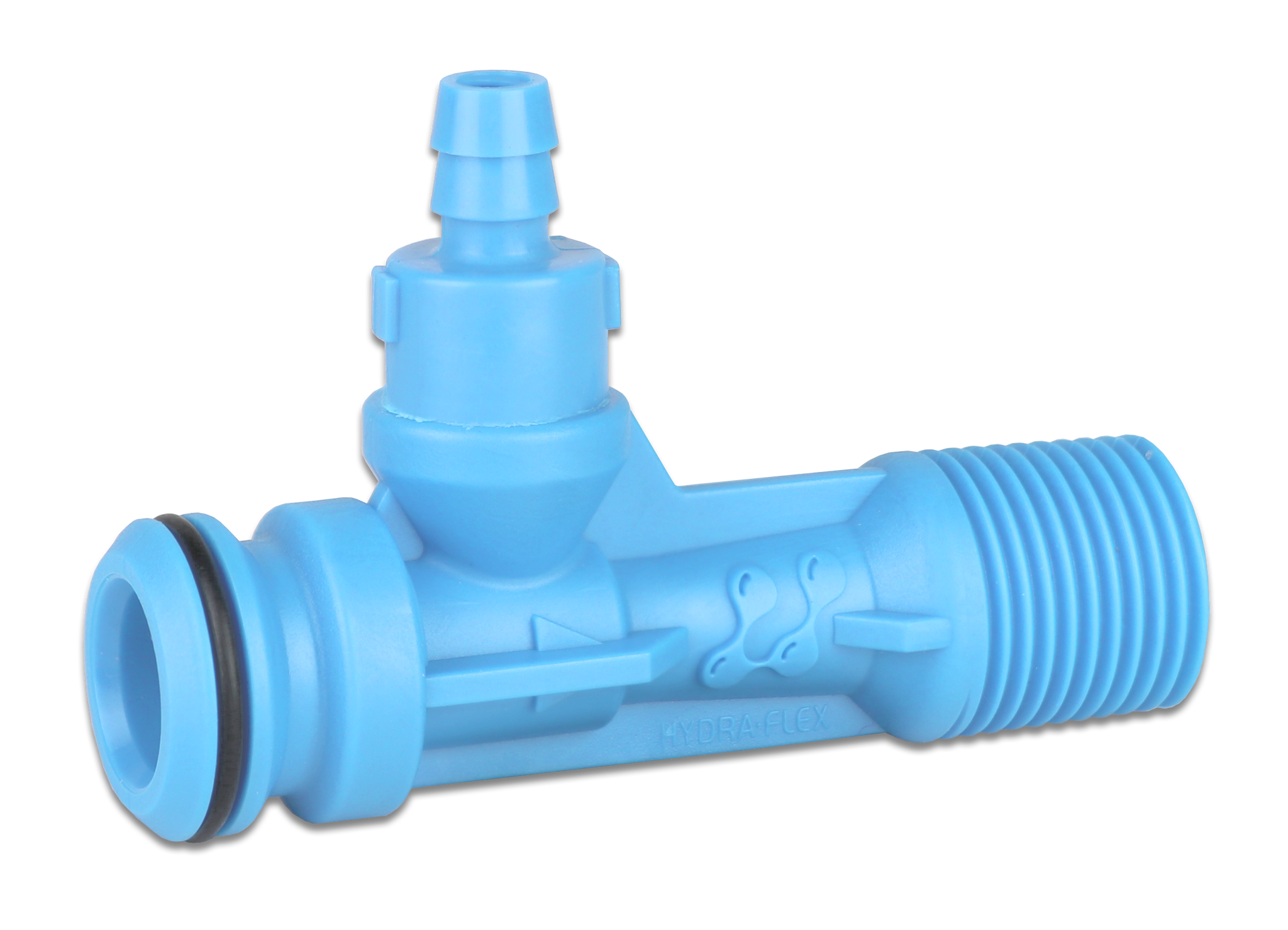

PC2 All Composite Quick-Connect Single Hose Barb
718029Composite injectors are designed to stand up to the most aggressive, yet common, car wash chemicals.
Single hose barb Venturi injector for diluting two chemicals with water. The nozzle and body of these injectors are manufactured using a corrosion-resistant composite material, which has been tested by the industry's leading chemical manufacturers with consistently positive results. A Hastelloy® spring, a Teflon® check ball, and an exclusive XFC o-ring material are also used for long life and durability.
Injectors are color-coded based on the water flow needed for each individual application, and combine with color-coded chemical metering tips to proportion the precise chemical mix ratio.
For use with Aqua-Lab Chemical Dispensing Systems.
PC2 injectors are for use with MAM valves only.
Specifications
Connection Type: PC2 Quick-Connect, All Composite
Max Pressure Inlet / Outlet: Up to 250 PSI (17 bar)
Temperature Range: 40º F - 140º F (4º C - 60º C)
Number of Hose Barbs: 1
Maximum Wrench Torque: Hand Tighten Only (30 in-lbs)
Part Numbers
| Injector Color | Flow Rate @ 200 PSI | Part Number |
|---|---|---|
| White | 0.25 GPM | 718029 |
| Yellow | Â 0.50 GPM | 718040 |
| Tan | Â 0.75 GPM | 718051 |
| Re | 1.00 GPM | 718057 |
| Orange | 1.50 GPM | 718070 |
| Grey | 2.00 GPM | 718083 |
| Dark Blue | 2.25 GPM | 718086 |
| Light Blue | 3.00 GPM | 718095 |
| Light Green | 3.25 GPM | 718098 |
| Pink | 3.75 GPM | 718106 |
| Purple | 4.50 GPM | 718117 |
| Dark Green | 5.5 GPM | 718125 |
Â
PC2 injectors are for use with MAM valves only.
